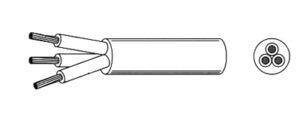

SJT SJTW电源线

PVC Insulated PVC Sheathed Cords
PVC 绝缘 PVC 护套软线
Rating:300V 60℃ ~105℃
Standard:UL 62 UL2556 CSA-C 22.2

NO. of conductor 导体芯数		Conductor construction 导体结构 (No./mm)		Inslation thickness 绝缘厚度 (mm)	Sheath thickness 护套厚度 (mm)	Reference diameter 参考外径 (mm)	Max Conductor resistance at 20℃ 20℃时导体电阻最大值 Ω/km
No.of core 芯数	AWG 线规	Conductor construction 导体结构 (No./mm)		Inslation thickness 绝缘厚度 (mm)	Sheath thickness 护套厚度 (mm)	Reference diameter 参考外径 (mm)	Solid	Stranded
2		18	41/0.160	0.38	0.76	5.9±0.1	21.4	22.4
		17	52/0.160	0.38	0.76	6.3±0.1	16.9	17.8
		16	26/0.254	0.38	0.76	6.4±0.1	13.4	14.1
3		18	41/0.160	0.38	0.76	6.4±0.1	21.4	22.4
		17	52/0.160	0.38	0.76	6.6±0.1	16.9	17.8
		16	26/0.254	0.38	0.76	6.8±0.1	13.4	14.1

60227 IEC 08 (RV-90)

60227 IEC 06(RV)

AWM 2464

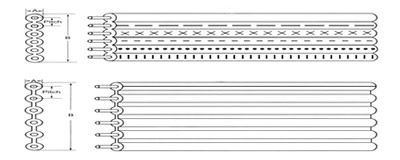

AWM 2468
