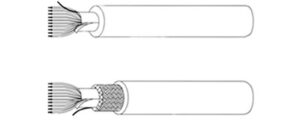

AWM 2464
PVC Insulated PVC Sheathed Cords
PVC 绝缘或SRPVC 绝缘护套软线
屏蔽：可用铝锡箔加镀锡或裸铜排流线或任选
Rating:300V 80℃
Standard:UL 758UL 2556 CSA-C 22.2 No.210.2
| Specification (规格) |
Conductor construction 导体结构 (n/mm) |
芯数 | 绝缘 | 屏蔽 | 护层 | Max Conductor resistance at 20℃ 20℃时导体电阻最大值 Ω/km |
|||
| AWG 线规 |
Inslation thickness 绝缘厚度 (mm) |
Reference diameter 参考外径 (mm) |
Inslation thickness 绝缘厚度 (mm) |
Reference diameter 参考外径 (mm) |
Solid | Stranded | |||
| 26 | 7/0.16 | 2 | 0.23 | 1.0±0.05 | 无 | 0.76 | 3.65±0.05 | 142.79 | 148.94 |
| 3 | 0.23 | 1.0±0.05 | 0.76 | 3.85±0.05 | |||||
| 4 | 0.23 | 1.0±0.05 | 0.76 | 405±0.05 | |||||
| 5 | 0.23 | 1.0±0.05 | 0.76 | 4.35±0.05 | |||||
| 6 | 0.23 | 1.0±0.05 | 0.76 | 4.65±0.05 | |||||
| 24 | 11/0.16 | 2 | 0.23 | 1.15±0.05 | 无 | 0.76 | 4.05±0.05 | 89.39 | 93.25 |
